Apraksts

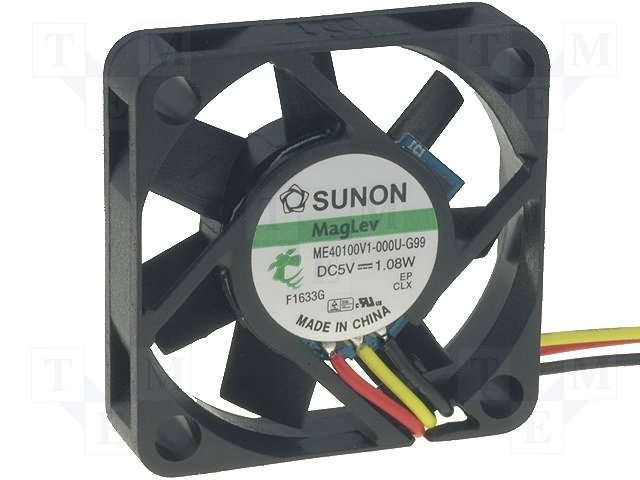

• Specification
• Fan type DC
• Fan dimensions 40x40x10mm
• Bearing type Vapo
• Fans efficiency 13.59m3/h
• Noise level 32dBA
• Supply voltage 5V DC
• Power consumption 1.08W
• Operating voltage 3.5...6V
• Signal output F type
• Rotational rate/speed 7000 (±15%)rpm
• Weight 13.5g
• Rated current 0.215A
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ;
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Operating temperature -10...70°C
• Static pressure 0.19mm H2O
• Leads 3 leads
• Flammability rating UL94V-0
• Fan motor brushless DC motor
• Cable length 300mm
• Wire size 26AWG
• Additional functions Autorestart

Parametri

40x40x10mm
5VDC
uz ass
MagLev
13.59m3/st
32dBA
5800apgr.
0.95W
