Apraksts

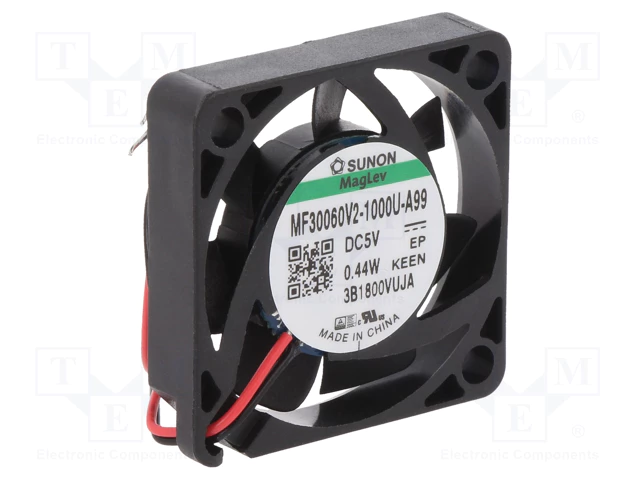

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 2.5...6V
• Fan dimensions 30x30x6mm
• Power consumption 0.36W
• Current rating 72mA
• Fan efficiency 6.35m3/h
• Noise level 15.7dBA
• Kind of Bearing Vapo
• Rotational rate/speed 7100rpm
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads lead x2
• Operating temperature -10...70°C
• Cable length 0.145m
• Flammability rating UL94V-0
• Additional functions Autorestart
• Fan motor brushless DC
• Static pressure 2.79mm H2O
• Wire size 28AWG
• Supply voltage
• 5V DC
• Gross weight5.82 g

Parametri

30x30x6mm
5VDC
uz ass
MagLev
6.35m3/st
15.7dBA
7100apgr.
0.36W

Papildu dokumentācija
