Apraksts

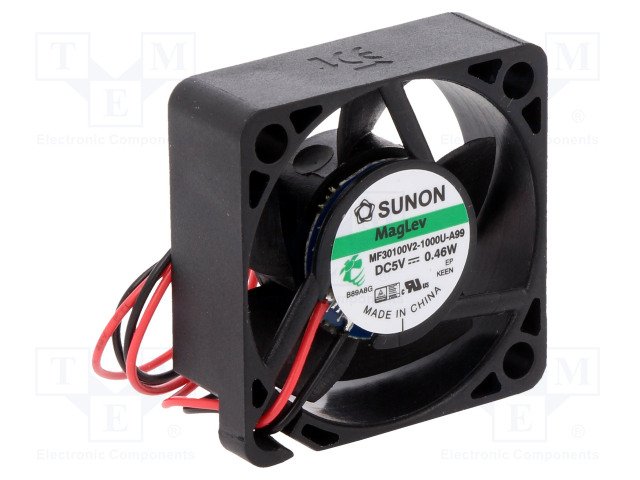

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 5V DC
• Fan dimensions 30x30x10mm
• Power consumption 0.4W
• Current rating 0.08A
• Fan efficiency 7.94m3/h
• Noise level 21dBA
• Kind of Bearing Vapo
• Rotational rate/speed 9500rpm
• Weight 7.8g
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 145mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Static pressure 4.32mm H2O
• Additional functions Autorestart
• Operating voltage 2.5...6V
• Wire size 28AWG Additional information
• Gross weight: 8.017 g
• Manufacturer part number: MF30100V2-1000U-A99

Parametri

30x30x10mm
5VDC
uz ass
MagLev
7.94m3/st
21dBA
9500apgr.
0.4W

Papildu dokumentācija
