Apraksts

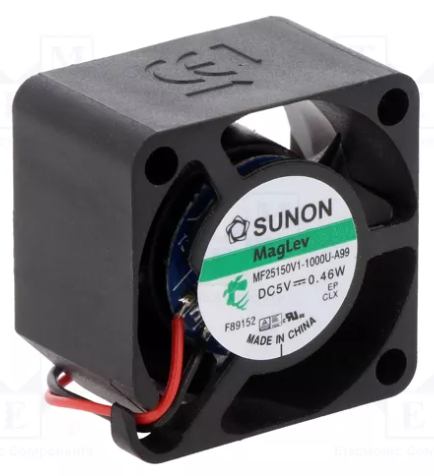

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 2,5...6V DC
• Fan dimensions 25x25x15mm
• Power consumption 0,43W
• Current rating 85mA
• Fan efficiency 5,24m3/h
• Noise level 20dBA
• Kind of Bearing Vapo
• Rotational rate/speed 10000obr./min
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads leads x2
• Lead length 0,15m
• Operating temperature -10...70°C
• Flammability rating UL94V-0
• Additional functions autorestart
• Fan motor brushless DC
• Static pressure 4,06mm H2O
• Wire size 28AWG
• Supply voltage
• 5V DC
• Masa bruto8.06 g

Parametri

25x25x15mm
5VDC
uz ass
MagLev
20dBA
5.24m3/st
10000apgr.
0.43W
