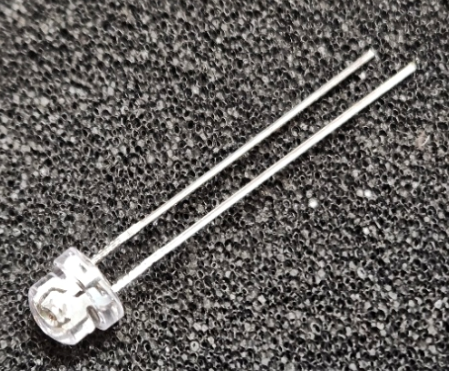

5mm, sarkana, 3000...4200mcd, 100°, 1.8...2.4V/20mA, 619-629nm, gaismas diode, Ø4.8x4.75mm, plakana
5mm, sarkana, 3000...4200mcd, 100°, 1.8...2.4V/20mA, 619-629nm, gaismas diode, Ø4.8x4.75mm, plakana
5mm, sarkana, 3000...4200mcd, 100°, 1.8...2.4V/20mA, 619-629nm, gaismas diode, Ø4.8x4.75mm, plakana 5mm, sarkana, 3000...4200mcd, 100°, 1.8...2.4V/20mA, 619-629nm, gaismas diode, Ø4.8x4.75mm, plakana

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

5mm, sarkana, 3000...4200mcd, 100°, 1.8...2.4V/20mA, 619-629nm, gaismas diode, Ø4.8x4.75mm, plakana

Cena: 0.27 €
00006317
OS5RPM56A1A-OP
125

  • Apraksts

    • Manufacturer OPTOSUPPLY
    • Type of diode LED
    • LED diameter 4.8mm
    • LED colour red
    • Luminosity 3000...4200mcd
    • Viewing angle 100°
    • Front convex
    • Wavelength 619-629nm
    • LED lens transparent
    • LED current 20mA
    • Terminal pitch 2.54mm
    • Mounting THT
    • Operating voltage 1.8...2.4V
    • Additional information
    • Gross weight: 0.217 g
    • Manufacturer part number: OS5RPM56A1A-OP

    Parametri

    THT
    sarkana
    3000...4200mcd
    1.8...2.4V
    20mA

    Papildu dokumentācija
