Apraksts

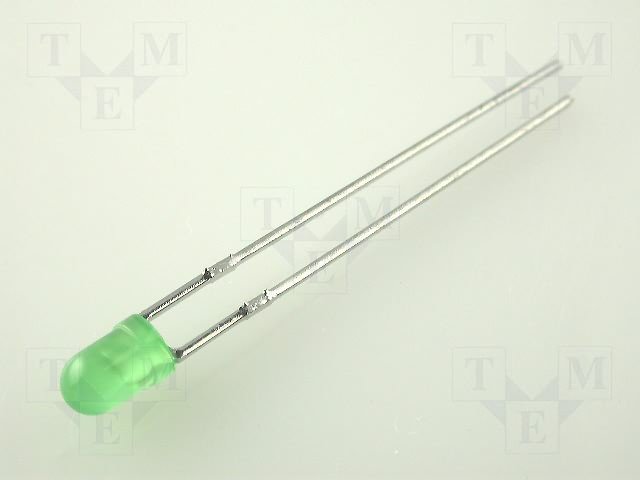

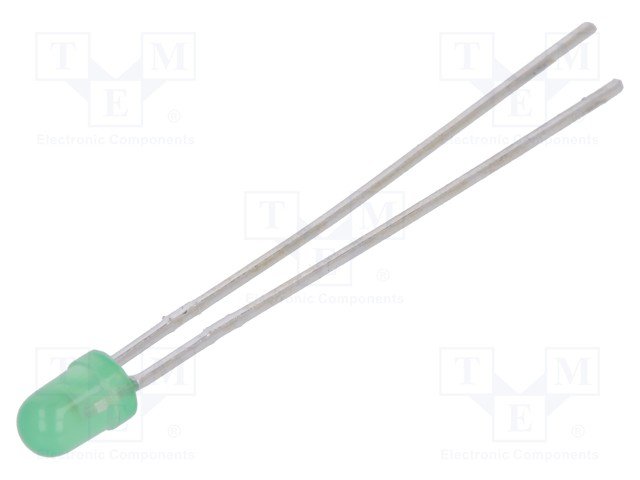

• Manufacturer KINGBRIGHT ELECTRONIC
• Type of diode LED
• LED diameter 3mm
• LED colour green
• Luminosity 8...20mcd
• Front convex
• Wavelength 568nm
• LED lens diffused,  green
• LEDs' features integral current limiting resistor
• LED current 11.5mA
• Mounting THT
• Terminal pitch 2.54mm
• Operating voltage 12...14V
• Viewing angle 60°
• Additional information
• Gross weight: 0.154 g
• Manufacturer part number: L-934GD-12V

Parametri

THT
zaļa
8...20mcd
12V
10...15mA

Papildu dokumentācija
