Apraksts

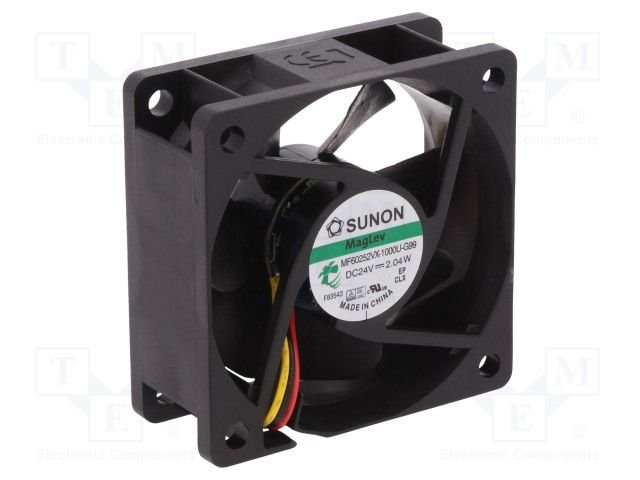

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 24V DC
• Fan dimensions 60x60x25mm
• Power consumption 1.92W
• Current rating 0.08A
• Fan efficiency 45.63m3/h
• Noise level 27dBA
• Kind of Bearing Vapo
• Signal output F type
• Rotational rate/speed 5200rpm
• Weight 45g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 3 leads
• Operating temperature -10...70°C
• Cable length 290mm
• Fan motor brushless DC motor
• Static pressure 7.87mm H2O
• Flammability rating UL94V-0
• Additional functions Autorestart
• Operating voltage 8...27.6V
• Wire size 26AWG Additional information
• Gross weight: 45 g
• Manufacturer part number: MF60252VX-1000U-G99

Parametri

60x60x25mm
24VDC
uz ass
MagLev
45.63m3/st
27dBA
5200apgr.
1.92W

Papildu dokumentācija
