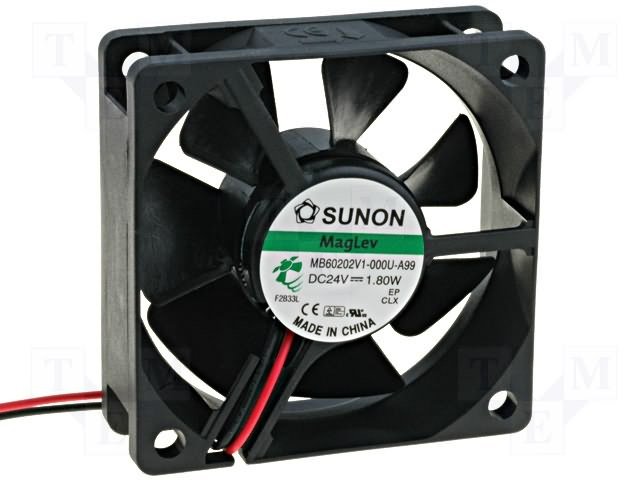

60x60x20mm, DC24V, MagLev, 39.08m3/h, 33.5dB, 4500rpm, 1.8W, Ventilators
60x60x20mm, DC24V, MagLev, 39.08m3/h, 33.5dB, 4500rpm, 1.8W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

60x60x20mm, DC24V, MagLev, 39.08m3/h, 33.5dB, 4500rpm, 1.8W, Ventilators

Cena: 9.35 €
00014093
MB60202V1-A99
12
  • Apraksts

    • Manufacturer SUNON
    • Fan type DC
    • Supply voltage 24V DC
    • Fan dimensions 60x60x20mm
    • Fans efficiency 39.08m3/h
    • Noise level 33.5dBA
    • Bearing type Vapo
    • Power consumption 1.8W
    • Operating voltage 12...27.6V
    • Rotational rate/speed 4500 (±15%)rpm
    • Weight 51g
    • Rated current 0.075A
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 10MΩ;
    • Fan material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class A
    • Operating temperature -10...70°C
    • Static pressure 4.57mm H2O
    • Leads 2 leads
    • Flammability rating UL94V-0
    • Fan motor brushless DC motor
    • Cable length 300mm
    • Wire size 26AWG
    • Additional functions Autorestart

    Parametri

    60x60x20mm
    24VDC
    uz ass
    MagLev
    39.08m3/st
    33.5dBA
    4500apgr.
    1.8W
