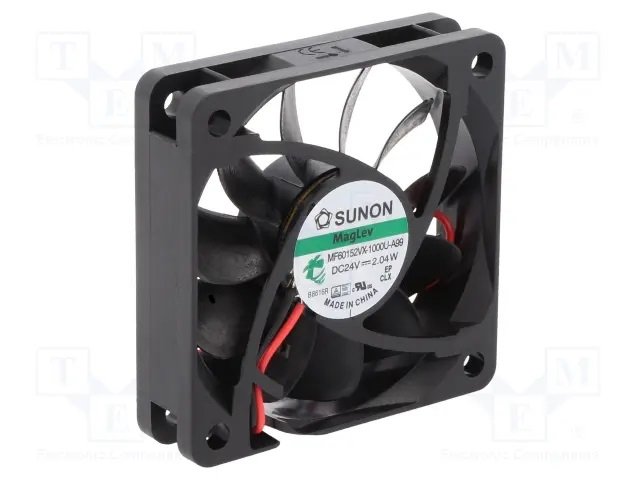

60x60x15mm, DC24V, MagLev, 51.38m3/h, 36.2db, 5400rpm, 2.04W, Ventilators
60x60x15mm, DC24V, MagLev, 51.38m3/h, 36.2db, 5400rpm, 2.04W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

60x60x15mm, DC24V, MagLev, 51.38m3/h, 36.2db, 5400rpm, 2.04W, Ventilators

Cena: 10.67 €
00023080
MF60152VX-A99-A
7
  • Apraksts

    • Manufacturer SUNON
    • Type of fan DC
    • Kind of fan axial
    • Supply voltage 24V DC
    • Fan dimensions 60x60x15mm
    • Power consumption 2.04W
    • Current rating 0.085A
    • Fan efficiency 51.38m3/h
    • Noise level 36.2dBA
    • Kind of Bearing Vapo
    • Rotational rate/speed 5400rpm
    • Weight 35.5g
    • Min. insulation resistance 10MΩ
    • Impeller material thermoplastic
    • Enclosure material thermoplastic
    • Leads 2 leads
    • Operating temperature -10...70°C
    • Cable length 290mm
    • Fan motor brushless DC motor
    • Flammability rating UL94V-0
    • Static pressure 5.59mm H2O
    • Additional functions Autorestart
    • Operating voltage 8...27.6V
    • Wire size 26AWG Additional information
    • Gross weight: 34.65 g
    • Manufacturer part number: MF60152VX-1000U-A99

    Parametri

    60x60x15mm
    24VDC
    uz ass
    MagLev
    51.38m3/st
    36.2dBA
    5400apgr.
    2.04W
