Apraksts

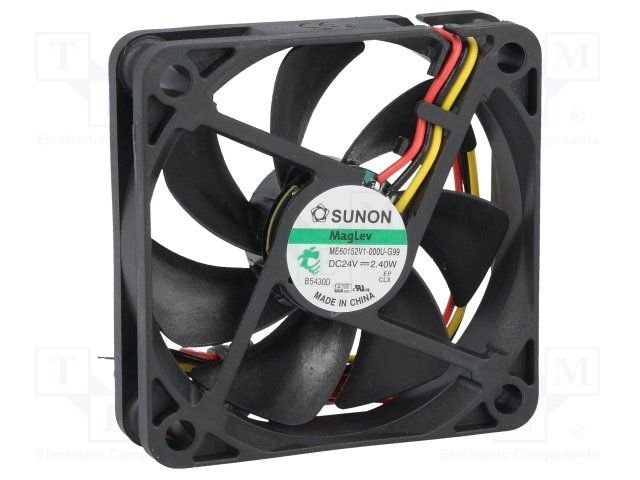

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 24V DC
• Operating voltage 8...27.6V
• Fan dimensions 60x60x15mm
• Power consumption 2.4W
• Current rating 0.1A
• Fans efficiency 42.83m3/h
• Noise level 36.2dBA
• Kind of Bearing Vapo
• Signal output F type
• Rotational rate/speed 5400 (±15%)rpm
• Weight 30.5g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 3 leads
• Operating temperature -10...70°C
• Static pressure 3.05mm H2O
• Cable length 300mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Wire size 26AWG
• Additional functions Autorestart

Parametri

60x60x15mm
24VDC
uz ass
MagLev
42.83m3/st
36.2dBA
5400apgr.
2.4W

Papildu dokumentācija
