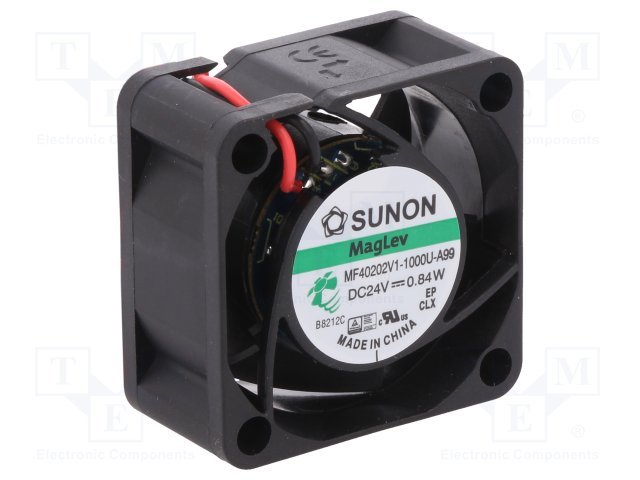

40x40x20mm, DC24V, MagLev, 18.25m3/h, 27.5dB, 8000rpm, 0.94W, Ventilators
40x40x20mm, DC24V, MagLev, 18.25m3/h, 27.5dB, 8000rpm, 0.94W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

40x40x20mm, DC24V, MagLev, 18.25m3/h, 27.5dB, 8000rpm, 0.94W, Ventilators

Cena: 8.18 €
00003683
MF40202VX-1000U-A99
9
  • Apraksts

    • Manufacturer SUNON
    • Type of fan DC
    • Kind of fan axial
    • Supply voltage 24V DC
    • Fan dimensions 40x40x20mm
    • Power consumption 0.94W
    • Current rating 0.039A
    • Fan efficiency 18.25m3/h
    • Noise level 27.5dBA
    • Kind of Bearing Vapo
    • Rotational rate/speed 8000rpm
    • Weight 29g
    • Min. insulation resistance 10MΩ
    • Impeller material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class A
    • Leads 2 leads
    • Operating temperature -10...70°C
    • Cable length 305mm
    • Fan motor brushless DC motor
    • Static pressure 7.37mm H2O
    • Flammability rating UL94V-0
    • Additional functions Autorestart
    • Operating voltage 8...27.6V
    • Wire size 26AWG Papildu informācijas
    • Masa bruto: 27.8 g
    • Oriģināls simbols: MF40202VX-1000U-A99

    Parametri

    40x40x20mm
    24VDC
    uz ass
    MagLev
    18.25m3/st
    27.5dBA
    8000apgr.
    0.94W
