Apraksts

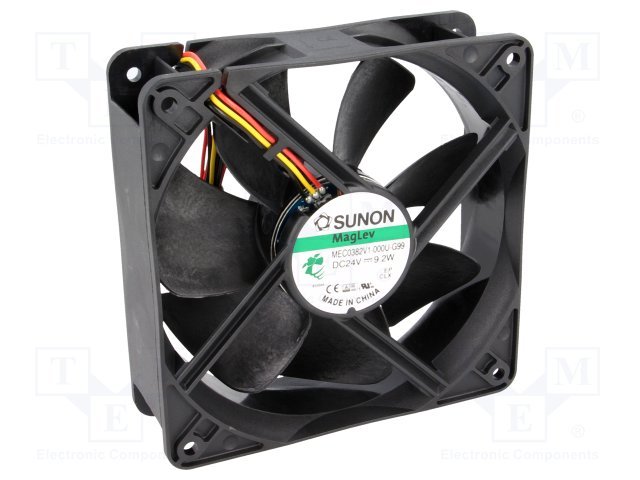

• Manufacturer SUNON
• Fan type DC
• Fan kind axial
• Supply voltage 24V DC
• Operating voltage 10...27.6V
• Fan dimensions 120x120x38mm
• Power consumption 9.2W
• Rated current 0.383A
• Fans efficiency 234.46m3/h
• Noise level 44.5dBA
• Bearing type Vapo
• Signal output F type
• Rotational rate/speed 31000 (±10%)rpm
• Weight 218g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Operating temperature -10...70°C
• Leads 3 leads
• Static pressure 9.14mm H2O
• Cable length 330mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Wire size 24AWG
• Additional functions Autorestart Additional information
• Gross weight: 0.22 kg

Parametri

120x120x38mm
24VDC
uz ass
MagLev
234.463m3/st
44.5dBA
3100apgr.
9.2W

Papildu dokumentācija
