Apraksts

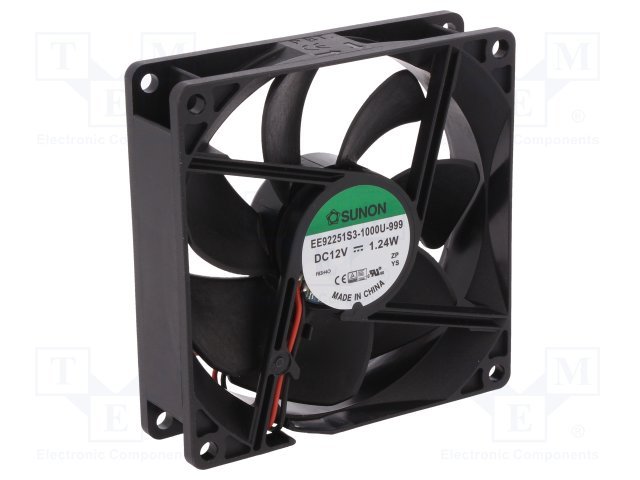

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Fan dimensions 92x92x25mm
• Power consumption 1.24W
• Current rating 0.103A
• Fan efficiency 66.76m3/h
• Noise level 28dBA
• Kind of Bearing slide bearing
• Rotational rate/speed 2400 (±10%)rpm
• Weight 92g
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 310mm
• Static pressure 2.54mm H2O
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Operating voltage 4.5...13.8V
• Wire size 24AWG Additional information
• Gross weight: 93 g

Parametri

92x92x25mm
12VDC
uz ass
slīdgultnis
66.76m3/st
28dBA
2400apgr.
1.24W
