Apraksts

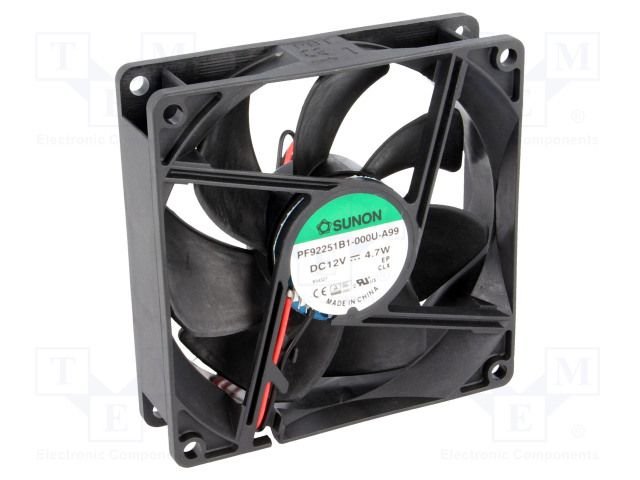

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Fan dimensions 92x92x25mm
• Power consumption 4.7W
• Current rating 0.393A
• Fan efficiency 127.42m3/h
• Noise level 47dBA
• Kind of Bearing ball bearing
• Rotational rate/speed 4500 (±10%)rpm
• Weight 103g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 300mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Static pressure 8.89mm H2O
• Additional functions Autorestart
• Operating voltage 6...13.8V
• Wire size 24AWG Additional information
• Gross weight: 107.4 g
• Manufacturer part number: PF92251B1-000U-A99

Parametri

92x92x25mm
12VDC
uz ass
ritgultnis
127.42m3/st
47dBA
4500apgr.
4.7W

Papildu dokumentācija
