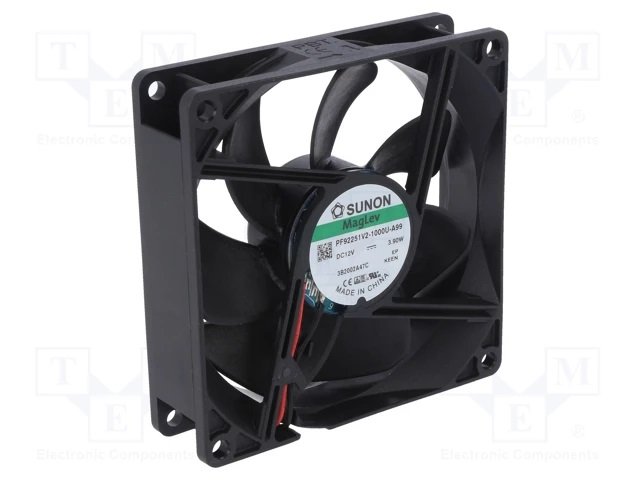

92x92x25mm, DC12V, MagLev, 118.8m3/h, 43.7db, 4200RPM, 3.36W, Ventilators
92x92x25mm, DC12V, MagLev, 118.8m3/h, 43.7db, 4200RPM, 3.36W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

92x92x25mm, DC12V, MagLev, 118.8m3/h, 43.7db, 4200RPM, 3.36W, Ventilators

Cena: 12.38 €
00028204
PF92251V2-A99-A
10
  • Apraksts

    • Manufacturer SUNON
    • Type of fan DC
    • Kind of fan axial
    • Operating voltage 6...13.8V
    • Fan dimensions 92x92x25mm
    • Power consumption 3.36W
    • Current rating 280mA
    • Fan efficiency 118.8m3/h
    • Noise level 43.7dBA
    • Kind of Bearing Vapo
    • Rotational rate/speed 4200rpm
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 10MΩ
    • Impeller material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class A
    • Leads 2 leads
    • Operating temperature -10...70°C
    • Cable length 0.305m
    • Flammability rating UL94V-0
    • Additional functions Autorestart
    • Fan motor brushless DC
    • Weight 106g
    • Supply voltage
    • 12V DC
    • Additional information
    • Gross weight: 106.5 g
    • Manufacturer part number: PF92251V2-1000U-A99

    Parametri

    92x92x25mm
    12VDC
    uz ass
    MagLev
    118.8m3/st
    43dBA
    4200apgr.
    3.36W
