Apraksts

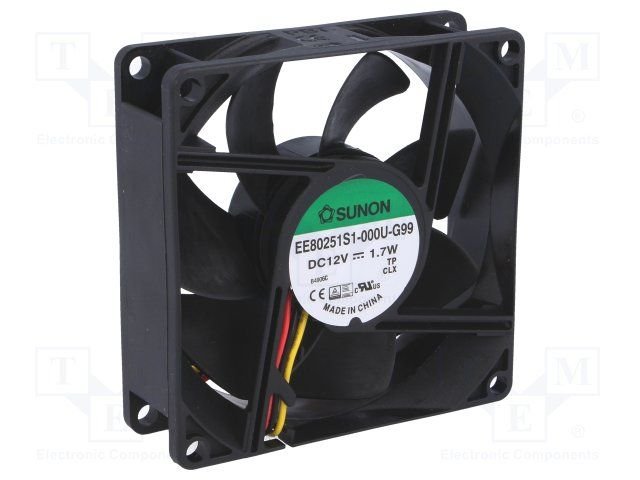

• Manufacturer SUNON
• Fan type DC
• Fan kind axial
• Supply voltage 12V DC
• Operating voltage 4.5...13.8V
• Fan dimensions 80x80x25mm
• Power consumption 1.7W
• Rated current 0.145A
• Fans efficiency 69.7m3/h
• Noise level 33dBA
• Bearing type slide bearing
• Signal output F type
• Rotational rate/speed 3200 (±10%)rpm
• Weight 75g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 500MΩ
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class E
• Operating temperature -10...70°C
• Leads 3 leads
• Static pressure 4.57mm H2O
• Cable length 300mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Wire size 28AWG
• Additional functions Autorestart

Parametri

80x80x25mm
12VDC
uz ass
slīdgultnis
69.7m3/st
33dBA
3300apgr.
1.8W

Papildu dokumentācija
