Apraksts

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Fan dimensions 60x60x25mm
• Power consumption 0.9W
• Current rating 0.075A
• Fan efficiency 39.72m3/h
• Noise level 27dBA
• Kind of Bearing Vapo
• Signal output F type
• Rotational rate/speed 4500rpm
• Weight 45g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 3 leads
• Operating temperature -10...70°C
• Cable length 290mm
• Static pressure 5.33mm H2O
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Additional functions Autorestart
• Operating voltage 4.5...13.8V
• Wire size 26AWG Additional information
• Gross weight: 45.7 g

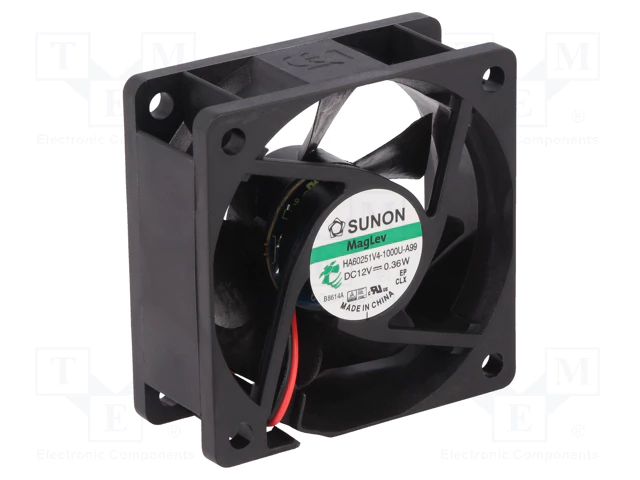

Parametri

60x60x25mm
12VDC
uz ass
MagLev
23.32m3/st
10.7dBA
2500apgr.
0.36W

Papildu dokumentācija
