Apraksts

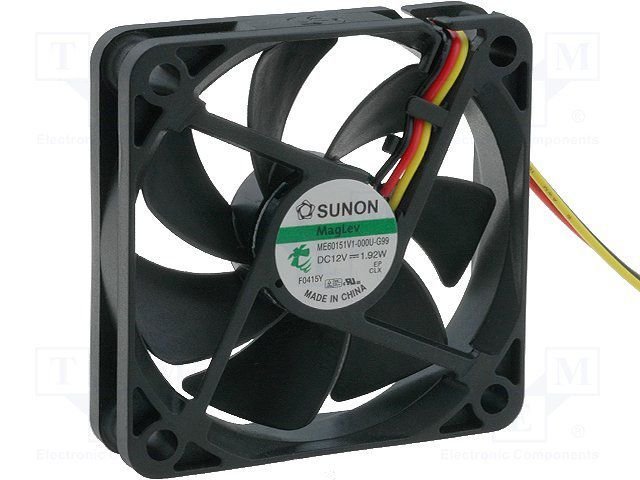

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Fan dimensions 60x60x15mm
• Power consumption 1.53W
• Current rating 0.127A
• Fan efficiency 44.62m3/h
• Noise level 34.2dBA
• Kind of Bearing Vapo
• Signal output F type
• Rotational rate/speed 4700rpm
• Weight 35.5g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 3 leads
• Operating temperature -10...70°C
• Cable length 290mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Static pressure 4.57mm H2O
• Additional functions Autorestart
• Operating voltage 4.5...13.8V
• Wire size 26AWG Additional information
• Gross weight: 35.28 g
• Manufacturer part number: MF60151V1-1000U-G99

Parametri

60x60x15mm
12VDC
uz ass
MagLev
44.62m3/st
34.2dBA
4700apgr.
1.53W

Papildu dokumentācija
