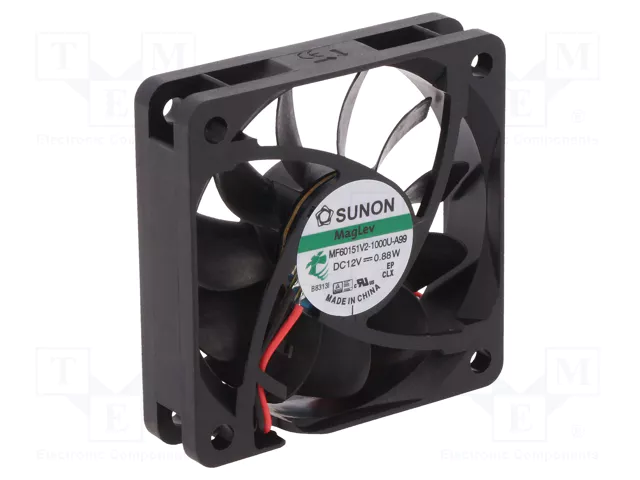

Apraksts

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 4,5...13,8V DC
• Fan dimensions 60x60x15mm
• Power consumption 0,82W
• Current rating 68mA
• Fan efficiency 38,53m3/h
• Noise level 29,2dBA
• Kind of Bearing Vapo
• Rotational rate/speed 3900obr./min
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads lead x2
• Operating temperature -10...70°C
• Cable length 0,29m
• Flammability rating UL94V-0
• Additional functions autorestart
• Fan motor brushless DC
• Static pressure 3,56mm H2O
• Wire size 26AWG
• Supply voltage
• 12V DC
• Masa bruto35.5 g

Parametri

60x60x15mm
12VDC
uz ass
MagLev
38.53m3/st
29dBA
3900apgr.
0.82W

Papildu dokumentācija
