Apraksts

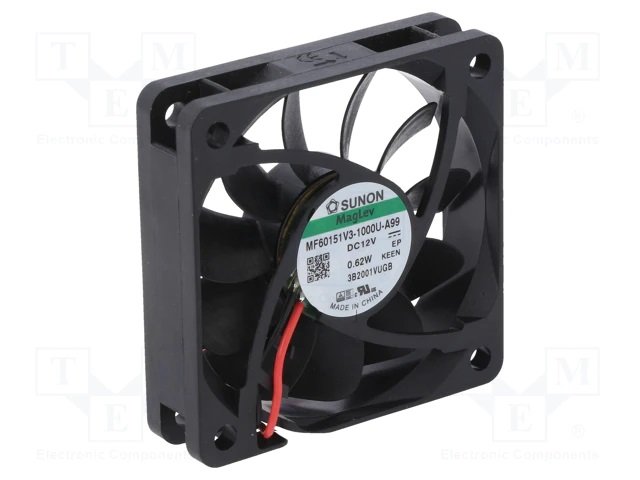

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Fan dimensions 60x60x15mm
• Power consumption 580mW
• Current rating 48mA
• Fan efficiency 29.88m3/h
• Noise level 21.3dBA
• Kind of Bearing Vapo
• Rotational rate/speed 3000rpm
• Weight 35.5g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 0.29m
• Flammability rating UL94V-0
• Additional functions Autorestart
• Fan motor brushless DC
• Operating voltage 4.5...13.8V
• Additional information
• Gross weight: 33 g
• Manufacturer part number: MF60151V3-1000U-A99

Parametri

60x60x15mm
12VDC
uz ass
MagLev
29.88m3/st
21.3dBA
3000apgr.
0.58W

Papildu dokumentācija
