Apraksts

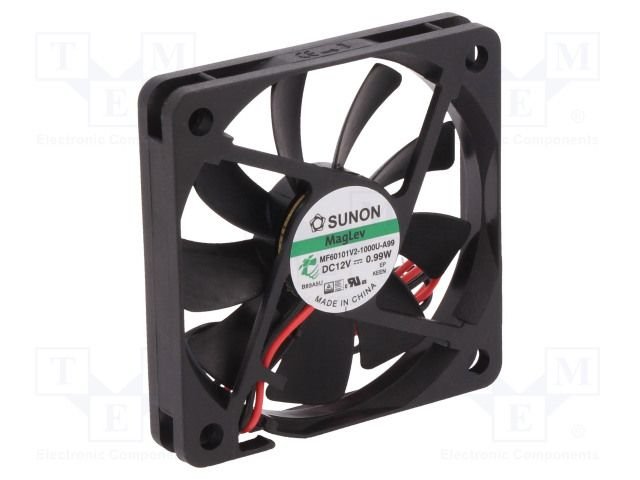

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Fan dimensions 60x60x10mm
• Power consumption 0.9W
• Current rating 0.075A
• Fan efficiency 24.17m3/h
• Noise level 25dBA
• Kind of Bearing Vapo
• Rotational rate/speed 3500rpm
• Weight 23g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 290mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Static pressure 2.54mm H2O
• Additional functions Autorestart
• Operating voltage 4.5...13.8V
• Wire size 26AWG Additional information
• Gross weight: 22.6 g
• Manufacturer part number: MF60101V2-1000U-A99

Parametri

60x60x10mm
12VDC
uz ass
MagLev
24.17m3/st
25dBA
3500apgr.
0.9W

Papildu dokumentācija
