Apraksts

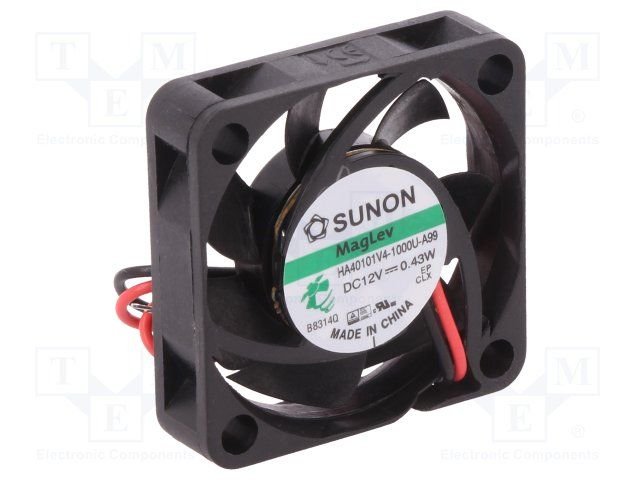

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Fan dimensions 40x40x10mm
• Power consumption 0.43W
• Current rating 0.31A
• Fan efficiency 9.13m3/h
• Noise level 15.7dBA
• Kind of Bearing Vapo
• Rotational rate/speed 5000rpm
• Weight 15.4g
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Leads 2 leads
• Operating temperature -10...70°C
• Static pressure 2.28mm H2O
• Cable length 300mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Additional functions Autorestart
• Storage temperature -40...70°C
• Operating voltage 4.5...13.8V
• Wire size 26AWG Additional information
• Gross weight: 14.63 g

Parametri

40x40x10mm
12VDC
uz ass
MagLev
9.13m3/st
15.7dBA
5000apgr.
0.43W

Papildu dokumentācija
