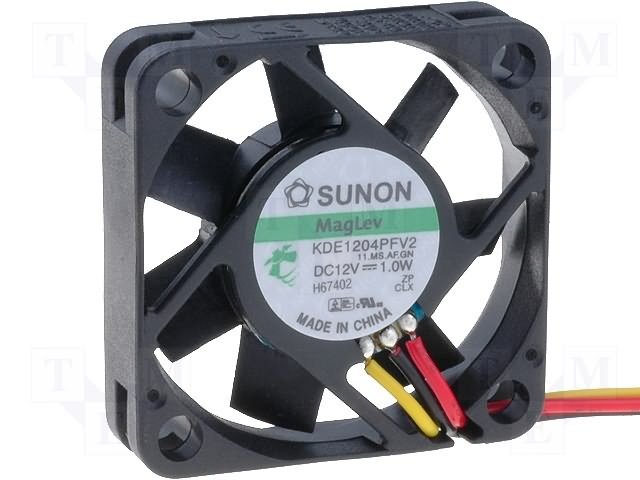

40x40x10mm, DC12V, MagLev, 11.89m3/h, 27dBA, 5800RPM, 1W, Ventilators ar deveju, tips F
40x40x10mm, DC12V, MagLev, 11.89m3/h, 27dBA, 5800RPM, 1W, Ventilators ar deveju, tips F
40x40x10mm, DC12V, MagLev, 11.89m3/h, 27dBA, 5800RPM, 1W, Ventilators ar deveju, tips F 40x40x10mm, DC12V, MagLev, 11.89m3/h, 27dBA, 5800RPM, 1W, Ventilators ar deveju, tips F

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

40x40x10mm, DC12V, MagLev, 11.89m3/h, 27dBA, 5800RPM, 1W, Ventilators ar deveju, tips F

Cena: 6.86 €
00018011
MF40101V2-G99-A
6
  • Apraksts

    • Specification
    • Fan type DC
    • Fan dimensions 40x40x10mm
    • Bearing type Vapo
    • Supply voltage 12V DC
    • Signal output F type
    • Fans maximum flow rate 11.89m3/h
    • Noise level 27dBA
    • Rotational rate/speed 5800 (±20%)rpm
    • Power consumption 1W
    • Static pressure 3.3mm H2O
    • Operating voltage range 6 ÷; 13.8V
    • Additional functions Autorestart
    • Weight 17g
    • Rated current 80mA
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 500MΩ;
    • Fan material thermoplastic PBT
    • Housing material thermoplastic PBT
    • Insulation class E
    • Leads 3 300mm leads AWG28
    • Operating temperature -10...70°C
    • Flammability rating UL94V-0
    • Fan motor brushless DC motor

    Parametri

    40x40x10mm
    12VDC
    uz ass
    MagLev
    11.89m3/st
    27dBA
    5800apgr.
    1W
