Apraksts

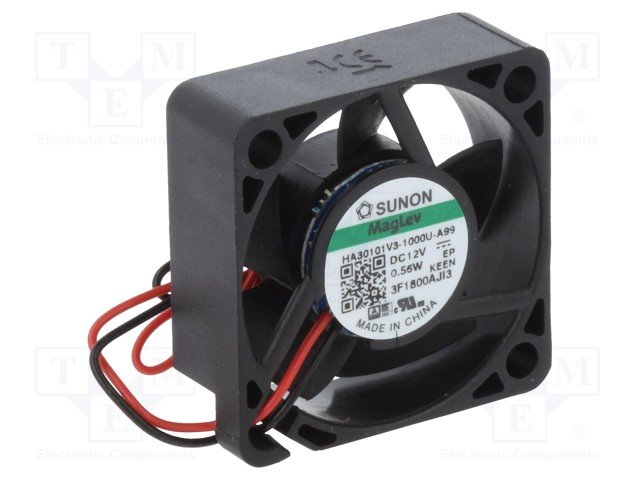

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Operating voltage 6...13.8V
• Fan dimensions 30x30x10mm
• Power consumption 0.56W
• Current rating 0.025A
• Fan efficiency 5.92m3/h
• Noise level 15.1dBA
• Kind of Bearing Vapo
• Rotational rate/speed 7000 (±20%)rpm
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 145mm
• Flammability rating UL94V-0
• Additional functions Autorestart
• Fan motor brushless DC
• Static pressure 2.54mm H2O
• Weight 7.8g
• Wire size 28AWG
• Additional information
• Gross weight: 8 g
• Manufacturer part number: HA30101V3-1000U-A99
• 99

Parametri

30x30x10mm
12VDC
uz ass
MagLev
5.92m3/st
15dBA
7000apgr.
0.56W
