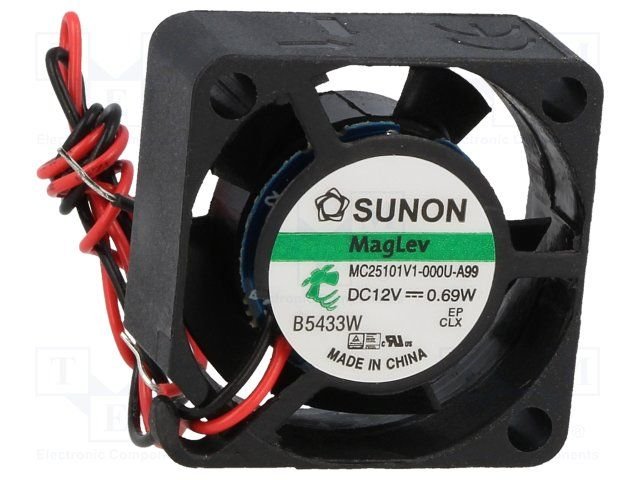

25x25x10mm, DC12V, MagLev, 5.95m3/h, 23dBA, 13000RPM, 0.69W Ventilators
25x25x10mm, DC12V, MagLev, 5.95m3/h, 23dBA, 13000RPM, 0.69W Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

25x25x10mm, DC12V, MagLev, 5.95m3/h, 23dBA, 13000RPM, 0.69W Ventilators

Cena: 6.55 €
00025217
MC25101V1-A99
2
  • Apraksts

    • Manufacturer SUNON
    • Fan type DC
    • Fan kind axial
    • Supply voltage 12V DC
    • Operating voltage 4.5...13.8V
    • Fan dimensions 25x25x10mm
    • Power consumption 690mW
    • Rated current 57mA
    • Fans efficiency 5.95m3/h
    • Noise level 23dBA
    • Bearing type Vapo
    • Rotational rate/speed 13000rpm
    • Weight 7.5g
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 500MΩ
    • Fan material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class A
    • Operating temperature -10...70°C
    • Leads 2 leads
    • Static pressure 6.35mm H2O
    • Cable length 150mm
    • Fan motor brushless DC motor
    • Flammability rating UL94V-0
    • Wire size 28AWG
    • Additional functions Autorestart

    Parametri

    25x25x10mm
    12VDC
    uz ass
    MagLev
    5.95m3/st
    23dBA
    13000apgr.
    0.69W
