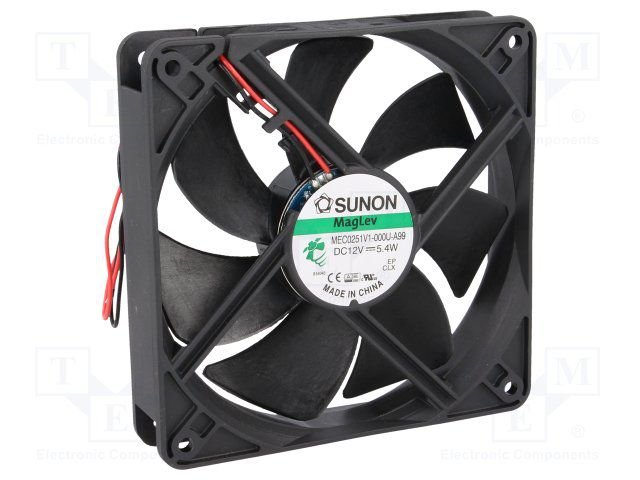

120x120x25mm, DC12V, MagLev, 183.83m3/h, 44.5db, 3100RPM, 5.4W, Ventilators
120x120x25mm, DC12V, MagLev, 183.83m3/h, 44.5db, 3100RPM, 5.4W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

120x120x25mm, DC12V, MagLev, 183.83m3/h, 44.5db, 3100RPM, 5.4W, Ventilators

Cena: 16.83 €
00024844
MEC0251V1-A99
6
  • Apraksts

    • Manufacturer SUNON
    • Fan type DC
    • Fan kind axial
    • Supply voltage 12V DC
    • Operating voltage 6...13.8V
    • Fan dimensions 120x120x25mm
    • Power consumption 5.4W
    • Rated current 0.451A
    • Fans efficiency 183.8m3/h
    • Noise level 44.5dBA
    • Bearing type Vapo
    • Rotational rate/speed 3100 (±10%)rpm
    • Weight 157g
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 10MΩ
    • Fan material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class A
    • Operating temperature -10...70°C
    • Leads 2 leads
    • Static pressure 7.11mm H2O
    • Cable length 330mm
    • Fan motor brushless DC motor
    • Flammability rating UL94V-0
    • Wire size 24AWG
    • Additional functions Autorestart

    Parametri

    120x120x25mm
    12VDC
    uz ass
    MagLev
    183.83m3/st
    44.5dBA
    3100apgr.
    5.4W
