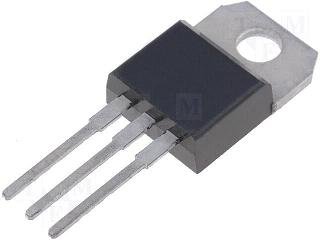

Apraksts

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Details
• Technology: Si
• Mounting Style: Through Hole
• Package/Case: TO-220-3
• Transistor Polarity: N-Channel
• Number of Channels: 1 Channel
• Vds - Drain-Source Breakdown Voltage: 100 V
• Id - Continuous Drain Current: 26 A
• Rds On - Drain-Source Resistance: 60 mOhms
• Vgs - Gate-Source Voltage: - 20 V, + 20 V
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Qg - Gate Charge: 30 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 85 W
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Tube
• Brand: STMicroelectronics
• Configuration: Single
• Fall Time: 20 ns
• Forward Transconductance - Min: 10 S
• Height: 9.15 mm
• Length: 10.4 mm
• Product Type: MOSFET
• Rise Time: 15 ns
• Series: STP24NF10
• 1000
• Subcategory: MOSFETs
• Transistor Type: 1 N-Channel Power MOSFET
• Type: MOSFET
• Typical Turn-Off Delay Time: 50 ns
• Typical Turn-On Delay Time: 60 ns
• Width: 4.6 mm
• Unit Weight: 2 g

Parametri

100V
26A
85W
0R055
TO-220
