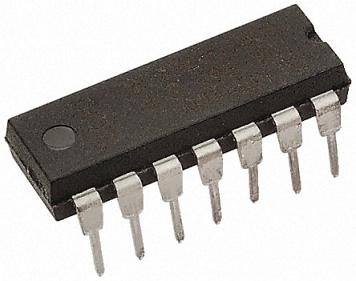

74LS26N Mikroshēma Quad 2-Input NAND Gate with High Voltage Open-Collector Outputs, DIP14
74LS26N Mikroshēma Quad 2-Input NAND Gate with High Voltage Open-Collector Outputs, DIP14

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

74LS26N Mikroshēma Quad 2-Input NAND Gate with High Voltage Open-Collector Outputs, DIP14

Cena: 0.54 €
00022947
SN74LS26N
10
  • Apraksts

    • Manufacturer: Texas Instruments
    • Product Category: Logic Gates
    • RoHS: Details
    • Product: Single-Function Gate
    • Logic Function: NAND
    • Logic Family: LS
    • Number of Gates: 4 Gate
    • Number of Input Lines: 8 Input
    • Number of Output Lines: 4 Output
    • High Level Output Current: 1 mA
    • Low Level Output Current: 8 mA
    • Propagation Delay Time: 17 ns
    • Supply Voltage - Max: 5.25 V
    • Supply Voltage - Min: 4.75 V
    • Minimum Operating Temperature: 0 C
    • Maximum Operating Temperature: + 70 C
    • Mounting Style: Through Hole
    • Package/Case: PDIP-14
    • Packaging: Tube
    • Brand: Texas Instruments
    • Function: NAND
    • Height: 4.57 mm
    • Input Type: TTL
    • Length: 19.3 mm
    • Logic Type: 2-Input NAND
    • Operating Supply Current: 4.4 uA
    • Operating Supply Voltage: 5 V
    • Operating Temperature Range: 0 C to + 70 C
    • Output Type: TTL
    • Product Type: Logic Gates
    • Series: SN74LS26
